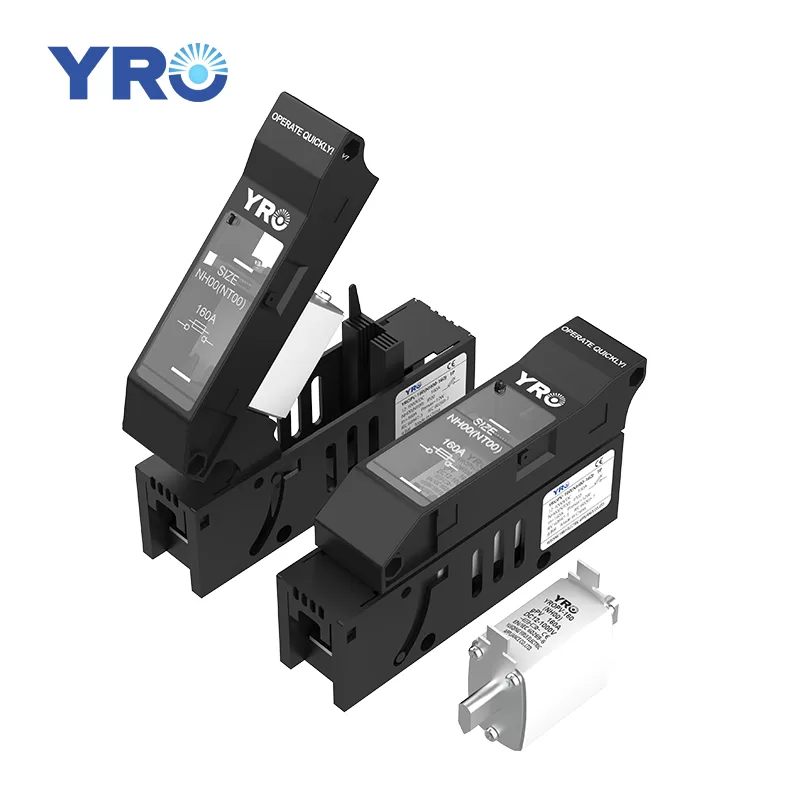

YRO DC Battery Fuse 1000VDC
YRO DC Battery fuse 1000vdc comes in a variety of current specifications (such as 100A, 160A, 250A, 315A.) and can be selected as needed. The installation method is standardized and compatible with common fuse bases.
Electrical systems use the YRO knife blade fuse as a safety component.. It features a flame retardant outer casing, a transparent viewing window, and a ceramic core. This fuse operates reliably in high voltage conditions up to 1000V, and works effectively across multiple power distribution setups, from residential circuits to industrial equipment.
Product Description
- Flame retardant shell: Safer and reduces fire hazards.
- Transparent observation window: Visual design makes it more intuitive to determine the fuse status.
- Ceramic fuse core: resistant to high temperature and high pressure, with a longer service life.
- Easy installation: The knife shaped design makes operation simple.
- Strong adaptability: Suitable for various industrial and household power distribution systems.
Product Parameters
| Type | YROPV-125; YROPV-160 | YROPV-200; YROPV-250 | |||
| With fuse |
Rated operational Voltage Ue | AC400/690/DC12-1000V | |||
| Rated operational currentle | 125A; 160A | 200A; 250A | |||
| Rated Insulation Voltage Ui | AC690/DC12~1000V | ||||
| Agreed heating current lth | 125A; 160A | 200A; 250A | |||
| Rated impulse withstand Voltage Uimp |
12kV | ||||
| Rated limiting short-circuit current lg |
AC 100kA
DC 50kA |
||||
| Use Category | AC-23B(AC400)/AC-21B(AC690) | ||||
| With isolating knife |
Electrical operating life | 200 times | |||
| Rated operational Voltage Ue | AC380/400/DC12-1000V | ||||
| Rated operational current le | 125A; 160A | 200A; 250A | |||
| Rated Insulation Voltage Ui | 690V/1000V | ||||
| Agreed heating current lth | 160A | 250A | |||
| Rated impulse withstand Voltage Uimp |
8KV | ||||
| Rated limiting short-circuit current lcw |
8kA/1s | 10kA/1s | |||
| Use Category | AC-21B | ||||
| Electrical operating life | 200 times | ||||
| Common parameters |
Rated frequency | 50/60HZ | |||
| Number of poles | 1Pole | ||||
| FUSE | Fuse size | YROPV-125(NH00); YROPV-160(NH00) | YROPV-200(NH1); YROPV-250(NH1) | ||
| Rated operational current le | 125A; 160A | 200A; 250A | |||
| Power waste P | 12W | 18W/32W | |||
| Mechanism | Mechanical life | 1000 times | |||
| Degree of protection(positive) | On:IP20/Off:IP30 | ||||
