LUMINOUS 8KW 48v Single Phase Hybrid Inverter Main
EASTER Deal!
IN STOCK!
7% OFF!

LUMINOUS 11KW 48v Single Phase Hybrid Inverter

Original price was: KShs 178,000.00.Current price is: KShs 165,000.00.

Lipia polepole with Flexpay. Start with as little as Ksh 500 lipa balance polepole at the convenience of your phone with 0% Interest. Collect your product at our outlets or have it delivered anywhere countrywide when you reach your goal.

Chat with us
Continue Shopping SKU: LR-11000-48 Category: Tags: , , , Brand:

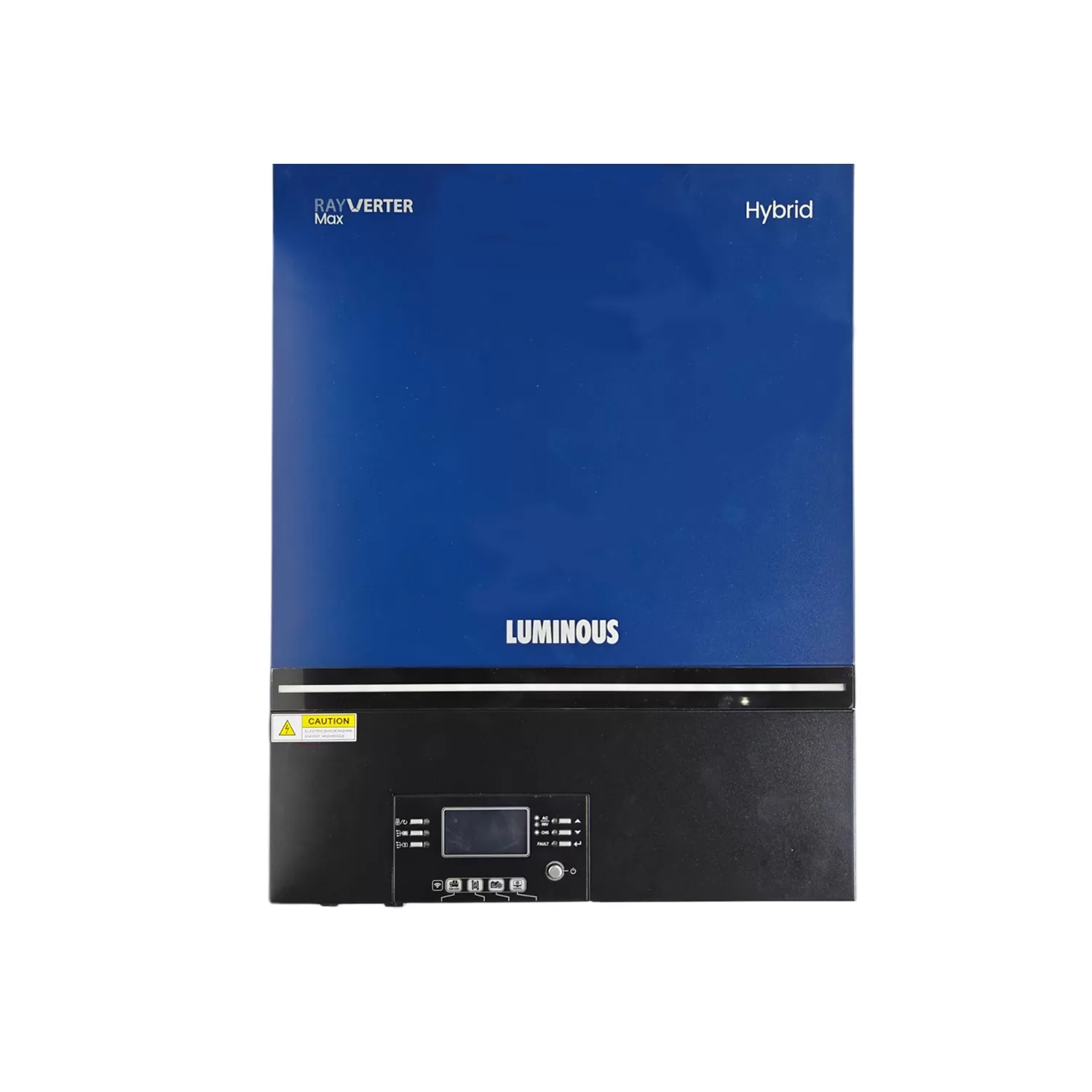

LUMINOUS 11KW 48v Single Phase Hybrid Inverter

The Luminous 11Kw 48V Single Phase Hybrid Inverter is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy independence.

During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery. Finally, the stored energy can be released when the loads require it. The battery can also be charged by a diesel generator to ensure uninterrupted supply in the event of grid blackout.

  • LCD Display
  • Max. charging/discharging current of 150A.
  • Max 6pcs parallel.
  • 48V low voltage battery, safe and reliable.
  • 10ms fast transfer from on-grid to off-grid mode.
  • It is equipped with RS485/CAN BMS port for Lithium Battery BMS communication.

LUMINOUS 11KW 48v Single Phase Hybrid Inverter

Luminous 8Kw 48V Single Phase Hybrid Inverter is a single-phase low voltage (48V) hybrid inverter that enables enhanced energy independence and maximizes self-consumption through solar energy prioritization. This series product supports single phase parallel and three phase application, and the Max. parallel units is up to 6 pcs.

Higher yields.

  • Improve self-consumption ratio up to 80%, reducing your electricity bill.
  • Dual MPPT input, Max solar input up to 11000W.

User-friendly.

  • LCD screen and buttons, easy operation.
  • LED Status Indication light.
  • Compatible with Lithium Batteries (Including BSLBATT lithium battery) and Lead acid batteries.
  • Web browser and mobile App monitoring supported.

Reliable.

  • Automatically switch from on-grid to off-grid mode within 5ms.

Smart.

  • Programmable power source priority.
  • Max. 6 units can be paralleled for higher system power.
  • Retrofitting of existing solar system to energy storage system.

Model: Rayverter Max 11KW

Battery Type : Lead-acid or Lithium-ion.

Battery Communication: RS485; CAN.

Rated AC Output and UPS Power (W) : 11000W.

Max. Solar DC Input Power (W) : 11000W.

No. of MPPT Trackers : 2.

Max. Solar DC Input Power Per MPPT (W) : 5500W.

No. of Strings Per MPPT Tracker : 1.

PV Input Voltage Range : 370V (90V-450V).

Grid Type : Single Phase.

Installation Style : Wall-Mounted.



Download the Luminous 1Kw 48V Single Phase Hybrid Inverter Datasheet Here.

Download the Manual Here.

Compatible with the BSLBatt Lithium-Ion Battery Here.

Warranty: 1 Year
