RoadSmart 3kw 24v Hybrid Inverter main
EASTER Deal!
IN STOCK!
18% OFF!

ROADSMART 3KW 24v Hybrid Inverter

Original price was: KShs 45,000.00.Current price is: KShs 37,000.00.

Lipia polepole with Flexpay. Start with as little as Ksh 500 lipa balance polepole at the convenience of your phone with 0% Interest. Collect your product at our outlets or have it delivered anywhere countrywide when you reach your goal.

Chat with us
Continue Shopping SKU: IVA-3300-24-1 Category: Tags: , , , , Brand:

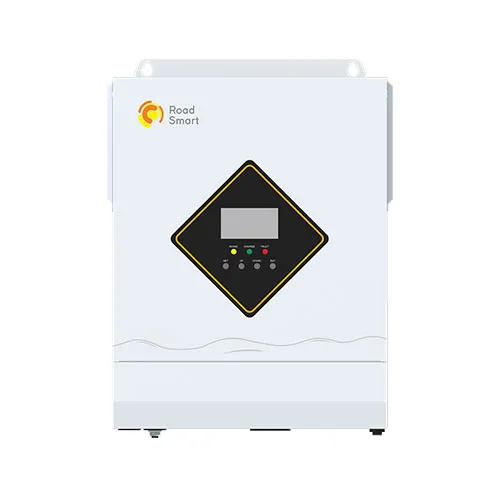

ROADSMART 3KW 24v Hybrid Inverter

The Roadsmart 3Kw 24V Hybrid Inverter is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence.

During the day, the Roadsmart 3Kw 24V Hybrid Inverter PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery. Finally, the stored energy can be released when the loads require it. The battery can also be charged by a diesel generator to ensure uninterrupted supply in the event of grid blackout.

  • LCD Display
  • Max. charging/discharging current of 80A.
  • 24V low voltage battery, safe and reliable.
  • 4ms fast transfer from on-grid to off-grid mode.
  • It is equipped with RS485/CAN BMS port for Lithium Battery BMS communication.

ROADSMART 3KW 24V Hybrid Inverter

ROADSMART 3Kw 24V Hybrid Inverter is a single-phase low voltage hybrid inverter that enables enhanced energy independence and maximizes self-consumption through solar energy prioritization. This series product supports single phase and three phase parallel application, and the Max. parallel units is up to 9pcs.

Higher yields.

  • Improve self-consumption ratio up to 80%, reducing your electricity bill.
  • Single MPPT input, Max solar input up to 4000W.

User-friendly.

  • LCD screen and buttons, easy operation.
  • Compatible with SRNE lithium-ion battery and Lead acid battery.
  • Web browser and mobile App monitoring supported.

Reliable.

  • Automatically switch from on-grid to off-grid mode within 5ms.

Smart.

  • Programmable power source priority.
  • Retrofitting of existing solar system to energy storage system.

Model:IVA-2403S

Battery Type : Lead-acid or Lithium-ion.

Battery Communication: RS485; CAN.

Rated AC Output and UPS Power (W) : 3300VA.

Max. Solar DC Input Power (W) : 4000W.

No. of MPPT Trackers : 1.

No. of Strings Per MPPT Tracker : 1.

PV Input Voltage Range : 370V (120V-450V).

Grid Type : Single Phase.

Installation Style : Wall-Mounted.



Download the Roadsmart 3Kw 24V  Hybrid Inverter Datasheet Here.

Compatible with the SRNE Lithium-Ion Battery.

Warranty: 1 Year

Weight 7 kg
Dimensions 38 × 28 × 11 cm
Battery Type Supported

Lead-acid or Lithium-ion
Communication with BMS

BMS Port Available: RS485; CAN
Charging Strategy for Li-Ion Battery

Self-adaption to BMS
Battery Voltage Range (V)

20~33V
Max. Charging Current (A)

80A
Max. PV DC Input Power (W)

4000W
PV Input Voltage (V)

500Voc
MPPT Range (V)

120V~450V
No.of MPPT Trackers

1
No.of Strings Per MPPT Tracker

1
PV Input Current (A)

13A
Rated AC Output and UPS Power (W)

3300W
AC Output Rated Current (A)

22.7/21.7
Output Frequency and Voltage

50/60Hz; 220/230Vac (single phase)
Protection Degree

IP20
Installation Style

Wall-mounted
Warranty

1 Year.
